LINDEMANN NxtCut Wing

NxtCut Wing – Powerful wings. Faster cuts.

LINDEMANN NxtCut Wing

NxtCut Wing – Powerful wings. Faster cuts.

LINDEMANN NxtCut Wing

LINDEMANN NxtCut Wing

NxtCut Wing delivers powerful dual-wing compaction, up to 1,000 tonnes of cutting force and intelligent automation for fast, efficient and reliable scrap processing.

Lindemann Keyfacs:

  • 400 bar hydraulic system for high energy efficiency.
  • Generous wing overstroke reduces wear.
  • Replaceable wear plates, including at stamper and blade slide, simplify maintenance.
  • Optimised guide materials ensure maximum reliability.
  • Hydraulic blade clamping supports reliable heavy-duty cutting.
  • Multiple cutting cycles optimise productivity.
  • Short, straight hydraulic piping with bent sections minimises power loss.
  • Control system with automated diagnostics and monitoring via myLindemann.
  • Remote control operation from the material handler with integrated display.
  • 600 t version designed as a monoblock for fast installation and commissioning.
  • The 600 t version can be lifted using integrated hydraulic jacks and transported on a low-bed trailer.

General Keyfacts:

  • Robust, durable construction for reliable processing of various scrap types, including pipes, bars, ELV, and production waste. Material can be compressed and cut into predefined lengths down to 10 cm.
  • Optional external pre-fill tipping trough improves performance.
  • No complex foundations required.
  • Strong wings ensure effective compaction.
  • Optional access platforms simplify maintenance.
  • Protected sensors ensure reliable operation.
  • Capable of producing high-density logs (bales) of approximately 1–1.4 t/m³.

General Keyfacts

  • Robust, durable construction for reliable processing of various scrap types, including pipes, bars, ELV, and production waste. Material can be compressed and cut into predefined lengths down to 10 cm.
  • Optional external pre-fill tipping trough improves performance.
  • No complex foundations required.
  • Strong wings ensure effective compaction.
  • Optional access platforms simplify maintenance.
  • Protected sensors ensure reliable operation.
  • Capable of producing high-density logs (bales) of approximately 1–1.4 t/m³.
0 / 0 / 0
t
Cutting forces
0 / 0
t
Stamper forces
2x 0 / 3x 0
kW
Drive power
(600 t also available with 170 kW or 290 kW Diesel)
Key Facts

Faster cuts
with powerful wings.

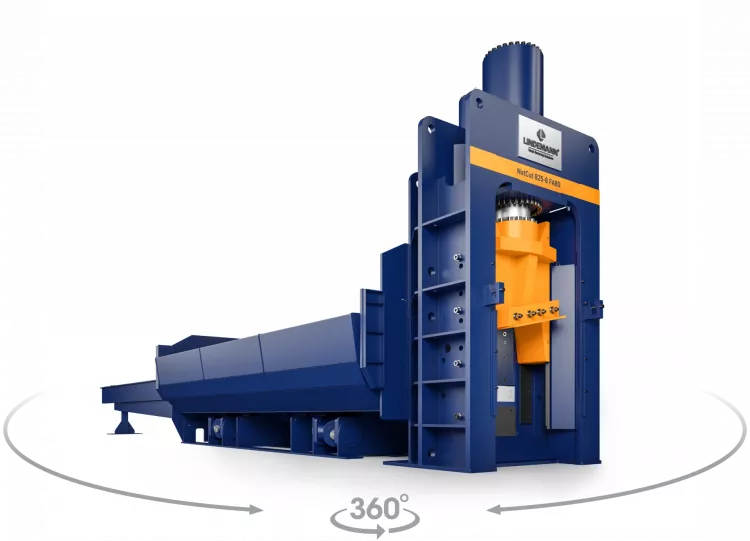

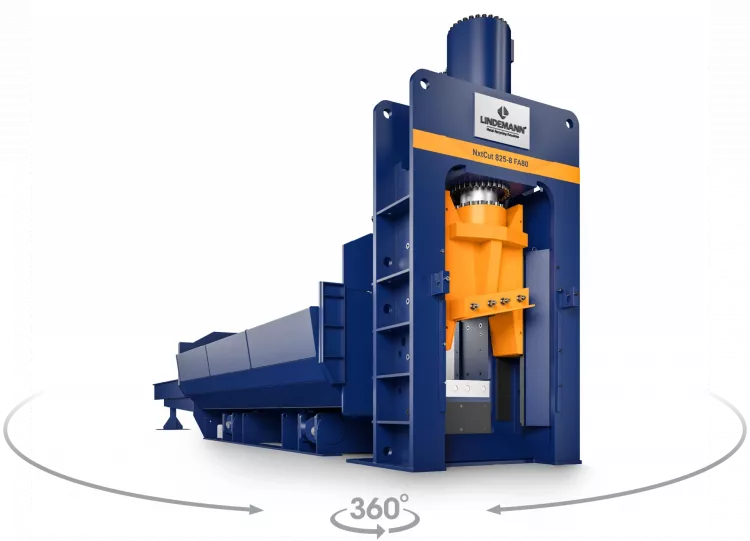

NxtCut Wing is a powerful stationary scrap shear engineered for fast, reliable processing of light to medium-heavy scrap. Delivering up to 1,000 tonnes of cutting force and featuring a long press box, it combines exceptional compaction performance with highly efficient automated cutting.

Its dual press wings generate up to 400 tonnes of force at the optimal angle, ensuring rapid and effective compression of bulky and mixed scrap such as pipes, bars, ELV and production waste. Generous overstroke reduces friction and wear, extending component life while improving throughput.

The 400-bar system maximises energy efficiency, while optional pre-fill hopper solutions allow improved performance. Intelligent automation, predictive maintenance tools and remote monitoring via myLindemann provide full process transparency and maximum availability.

With robust construction and flexible installation options the NxtCut Wing delivers dependable performance and consistent output for demanding recycling operations.

LINDEMANN NxtCut Wing
Discover the LINDEMANN NxtCut Wing
YT Video
Discover how the technology works in real operating conditions – watch the product video for detailed insights.
Watch the Video
Download Data Sheet
Contact Person
Data Sheet

Request Product Information

Get all the facts you need – download the data sheet for in-depth specifications, performance data, and configuration details.
